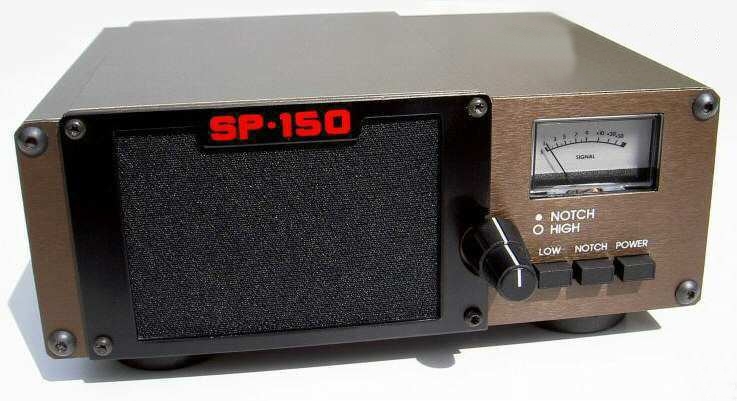

Lowe SP-150 - (Matching Unit to the Lowe HF-150 Receiver.)
| Type: |
Amplified speaker and S-meter unit |
| Max ouput power: |
10 W |
| Impedance: |
4 ohms |
| Frequency response: |
?-? Hz |
| Filter response: |
High pass: 500 Hz fixed 6 dB/octave (500 Hz -6 dB, 300 Hz -20 dB)
Low pass: 0.8-6 KHz variable 24 dB/octave (2.5 KHz -6 dB, 7 KHz -40 dB)
Notch: 0.4-4 KHz variable >40 dB (BW: 100 Hz -6 dB, 15 Hz -20 dB) |
| Voltage: |
11-15 VDC |
| Current Drain: |
500 mA |
| Dimensions (W*H*D): |
185*80*175 mm |
| Weight: |
? Kg |
| Manufactured: |
1994-199x |
| Other: |
|
| Related Documents: |
User Manual (231 KB) |
 |
